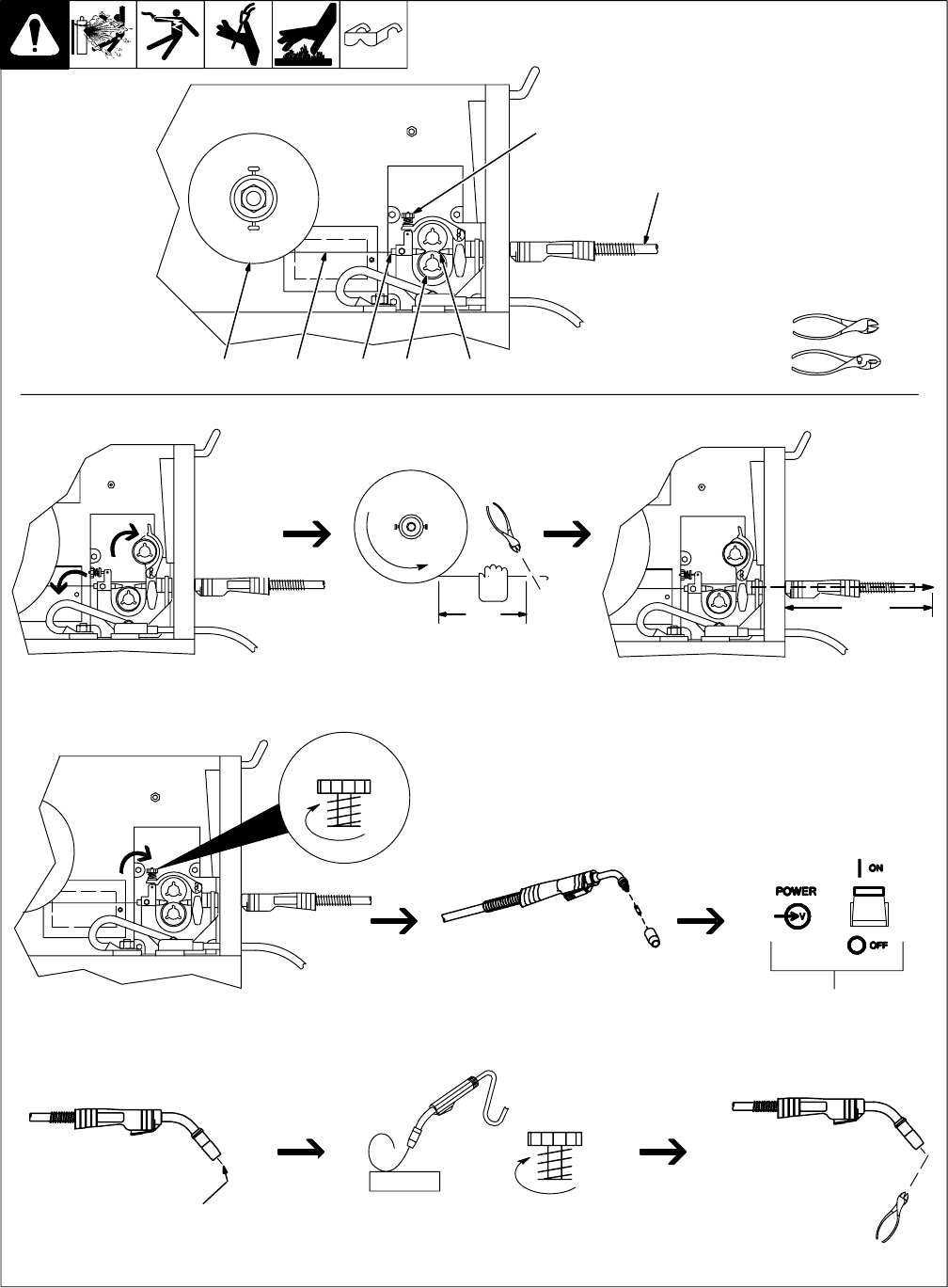

2-13. Threading Welding Wire

1 Wire Spool

2 Welding Wire

3 Inlet Wire Guide

4 Pressure Adjustment Knob

5 Drive Roll

6 Outlet Wire Guide

7 Gun Conduit Cable

Lay gun cable out straight.

3 5 621

Tools Needed:

Ref. ST-148 261-C / ST-159 218-B / ST-801 083 / S-0627-A

6 in

(150 mm)

. Hold wire tightly to keep it

from unraveling.

4 in

(102 mm)

Tighten

WOOD

Open pressure assembly. Pull and hold wire; cut off end. Push wire thru guides into gun;

continue to hold wire.

Close and tighten pressure

assembly, and let go of wire.

Remove gun nozzle and contact tip. Turn On.

Press gun trigger until wire

comes out of gun. Reinstall

contact tip and nozzle

Feed wire to check drive roll pressure.

Tighten knob enough to prevent slipping.

Cut off wire. Close

and latch door.
